QIIMAYNTA KALA SOCODKA AWOODDA SARE EE SOLID-STE

Sida vacuum tube soo noqnoqoshada sare, inkastoo mabaadi'da aasaasiga ah ay isku mid yihiin. gobolka adag ee soo noqnoqda sare sidoo kale waxaa loo kala saari karaa noocyo kala duwan iyadoo loo eegayo shuruudaha kala duwan sida isticmaalka, qaybaha, awoodda iyo inta jeer.

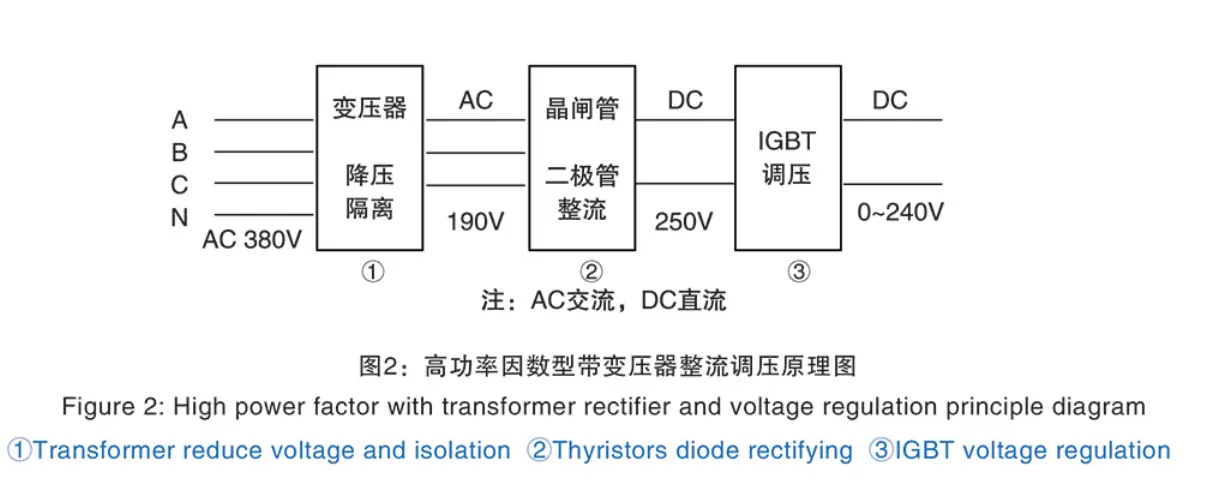

1. Lagu kala saaray hagaajinta nidaamka danabka: Thyristors(SCR) waxa loo isticmaali karaa in lagu dhamaystiro sixitaan isku mar ah iyo nidaaminta danabka,ama marka hore isticmaal diode ama thyristors hagaajinta ka dibna la isticmaalo IGBT regulate danab. Isticmaalka korantada nidaamisa IGBT waxa loogu talagalay wanaajinta qodobbada qalabka.waxa ay badbaadin kartaa koronto oo ay sii wanaajisaa tayada alxanka.

2. Marka loo eego terminal-ku-gudbinta waxay leeyihiin transformer ama ma kala saari karaan laba nooc, haddii hore aan lahayn transformer ka dibna sida caadiga ah ka dib qaybta soo noqnoqda sare waxay ku dari doontaa transformer-ka soo noqnoqda sare si loo xaqiijiyo go'doominta inductor iyo grid. Haddii qalabku leeyahay qalabka wax-ka-beddelka, markaas ayaa loo qaybin doonaa transformer-ka saliidda-ku-jira ee dibadda ah iyo transformer qallalan.

3. Sida laga soo xigtay qaybaha loo isticmaalo buundada inverter ah, waxaa jira low-voltage MOS (field effect transistor), high-voltage MOS, IGBT (lsulated Gate Bipolar Transistor) iyo wixii la mid ah. Hadday tahay koronto-sare ama Low-voltage MOS, nooca cusub ee SIC-MOS qaybaha ayaa bedeli kara iyaga. khasaaraha hoose, danab adkeysi sare, inta jeer beddelka degdeg ah etc.Waa qaybaha kale ee hadda ka mid ah qaybaha MOS caadiga ah, sidoo kale laga yaabaa in ay beddelaan IGBT si ay u noqdaan doorashada koowaad ee qalabka soo noqnoqda hooseeyo. Qaybaha Sic waxaa loo isticmaali karaa in dhammaan taxanaha ah ee alaabta shirkadda our.and ka dib markii badan on-site verification.macaamiisha dooran kartaa kalsooni.

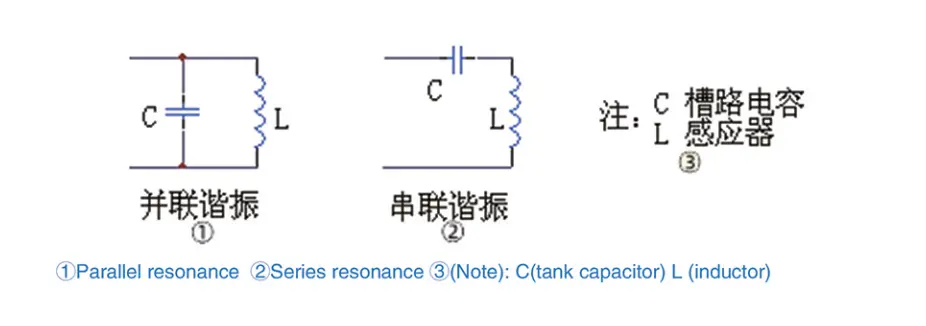

4. Marka loo eego xidhiidhka kala duwan ee wareegga taangiga resonant, waxa loo qaybiyaa laba nooc: taxane iyo is barbar socda, sida ku cad kuwan soo socda:

5. Sida ku cad habka rakibidda, waxaa jira laba nooc: alxanka kala soocan iyo alxanka is haysta. alxanka is haysta waxa loola jeedaa kabadh toosiye iyo kabacdi isbedbedelay oo ka dhigaya dhamaan golaha wasiirada. Labaduba taxan iyo kuwa barbar socda waxay leeyihiin alxanka iyo alxanka is haysta.

6. suuqa hadda, resonance taxan sida caadiga ah isticmaalaa high-voltage MOS ama IGBT, iyo resonance barbar isticmaalaa korantada hoose MOS. No input tallaabo-hoos transformer for taxane resonance laakiin transformer soo noqnoqda sare u baahan doona gelin ka dib bridge inverter.

Dhammaan noocyada kala duwan ee ilaha tamarta soo noqnoqda sare waxay leeyihiin sifooyin u gaar ah, qalabka shirkadeena soo socda waxay yeelan doonaan sharaxaad faahfaahsan.
